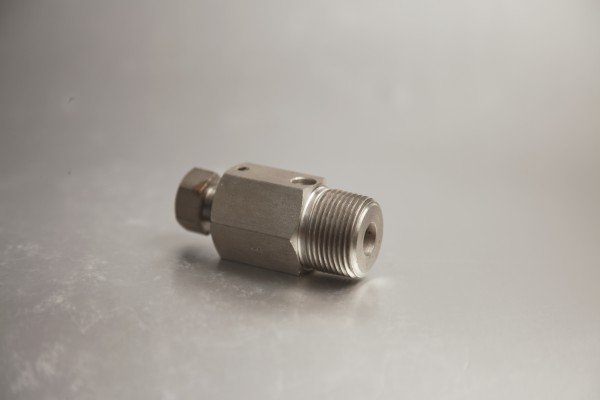

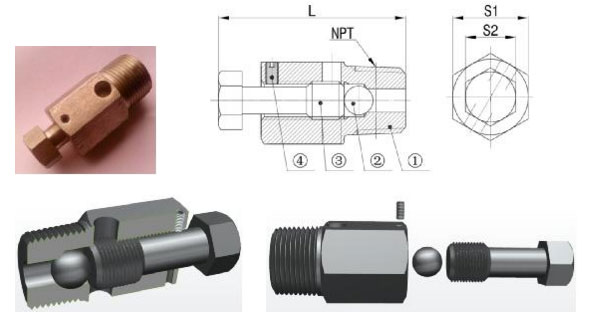

1、排污阀照片和简图：
2、材料配置明细栏：
|
|
|
|
|
|
|
|
①阀体 |
②钢球 |
③螺栓 |
④螺钉 |
|
CR |
A3 |
440C |
1035 |
300 |
|
CD |
A105 |
440C |
1035 |
300 |
|
CE |
4140 |
440C |
1035 |
300 |
|
AA |
304 |
440C |
304 |
300 |
|
AB |
316 |
440C |
316 |
300 |
|
FA |
F51 |
YN6 |
F55 |
300 |
|
FB |
F53 |
YN6 |
F55 |
300 |
|
FC |
F55 |
YN6 |
F55 |
300 |
|
NA |
N06625 |
YN6 |
N06625 |
300 |
|
NB |
N08825 |
YN6 |
N06625 |
300 |
3、规格型号：
|
NPT螺纹规格 |
型号 |
S1 |
S2 |
L |
|
1/8-27 NPT |
DSV4-B |
S14 |
S9/S10/S11 |
34 |
|
1/4-18 NPT |
DSV4-C |
S17 |
S11/S12/S13 |
42.5 |
|
3/8-18 NPT |
DSV4-D |
S19 |
S13/S14/S15 |
49.5 |
|
1/2-14 NPT |
DSV4-E |
S24 |
S15/S16/S17 |
59.5 |
|
3/4-14 NPT |
DSV4-F |
S28.5 |
S19/S20/S21 |
70 |
|
1-11 1/2 NPT |
DSV4-G |
S34/S36 |
S22/S23/S24 |
84.5 |
4、备注：
①例如产品型号“DSV4-E-CE”表示：注脂阀DSV4系列，NPT1/2规格，材料配置为CE；
②其它详见《泄放阀技术参数及说明》。
